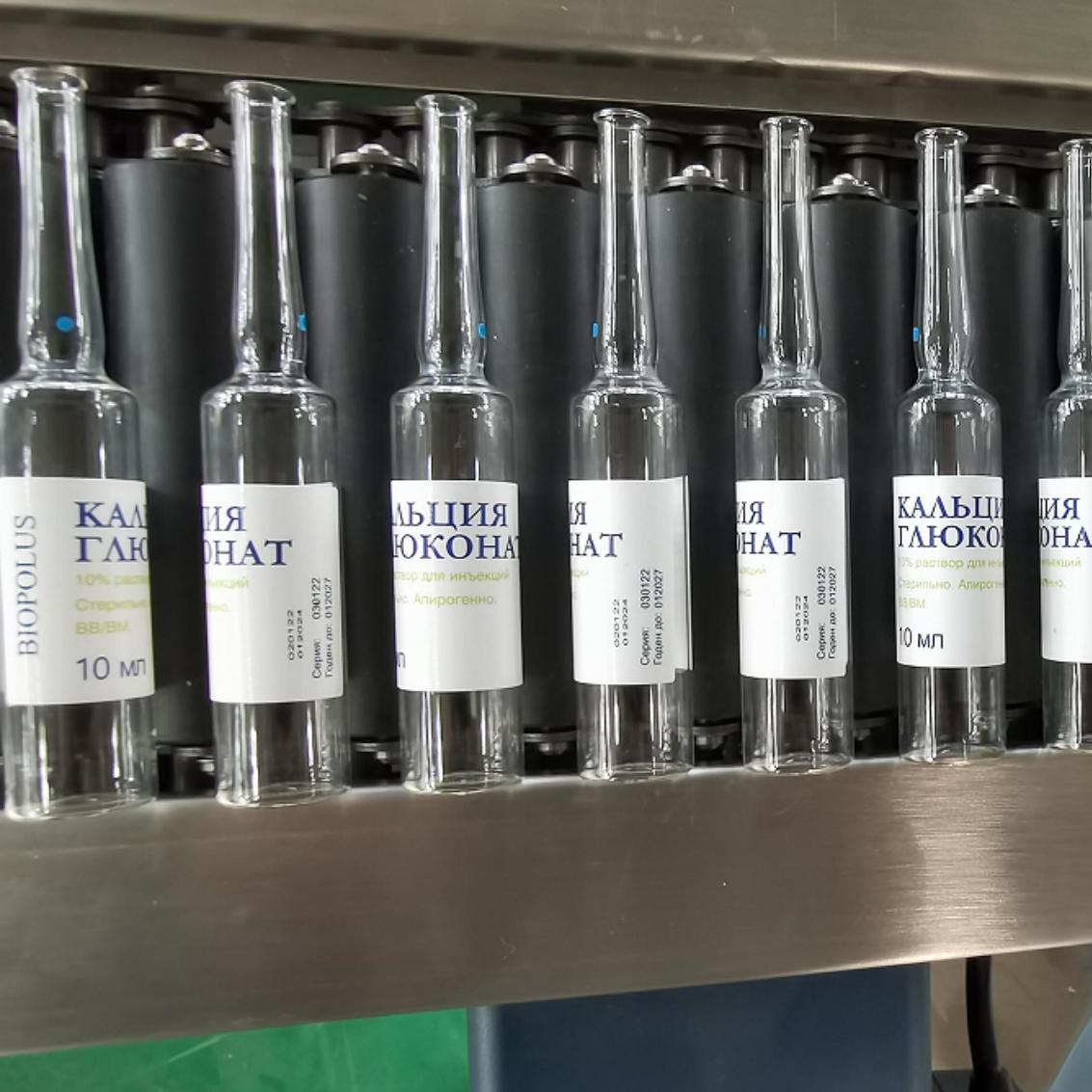

Ampoule labeling machine labeller
Model :PWM-A
Capacity ：50-200pcs/min
Application: tube , vial ...
Labeling position: wrap around
Control system : Step& Servo& German novexx
Machine size : 1800（L） 800 (W) 1350 (H) mm
Voltage : 110V/220V/380V
Optional Device: Printer, Collection hopper
- Product Details
- Technical Specification
Overview
SKILT PWM series is the horizontal way labeling , specially suit for the small and thin Cylinder product labeling wrap around. With the Servo motor labeling engine and German NOVEXX labeling engine for choose.
Additional modules
1. The system can be expanded to include label printing systems such as thermal transfer printing systems, thermal inkjet devices (TIJ), continuous inkjet systems (CIJ) or hot stamping devices,TTO module.
2. Optional vision systems guarantee quality criteria such as the presence, correctness of print data, label placement on your products and ensure that complaints are settled right from the start.
Parameter
Model | PWM-A |
Driving Mode | Servo motor |
Yield（pcs/min） | 50-400 (depends on tube and label size) |
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm |
Inner diameter of label roll | 76 mm |
Outer diameter of label roll | 350 mm(max) |
Suitable label size | L:10-100mm，H:10-150mm |
Suitable labeling object size | Diameter: 10-30mm |
Printer use air | 5kg/cm ² |
Voltage (can customized) | 110V/220V/380V |
Machine size | 1800（L） 800 (W) 1300 (H) mm |
Electrical Brand
No | Name | Brand |
1 | HMI (Touch screen) | SIEMENS |
2 | PLC | SIEMENS |
3 | Servo motor and driver | Panisonic |
4 | Sensor (check labeling object) | Japan KEYENCE |
5 | Sensor (check label) | German LEUZE |
6 | Roll label motor | German JSCC |
7 | Conveyor motor | German JSCC |
