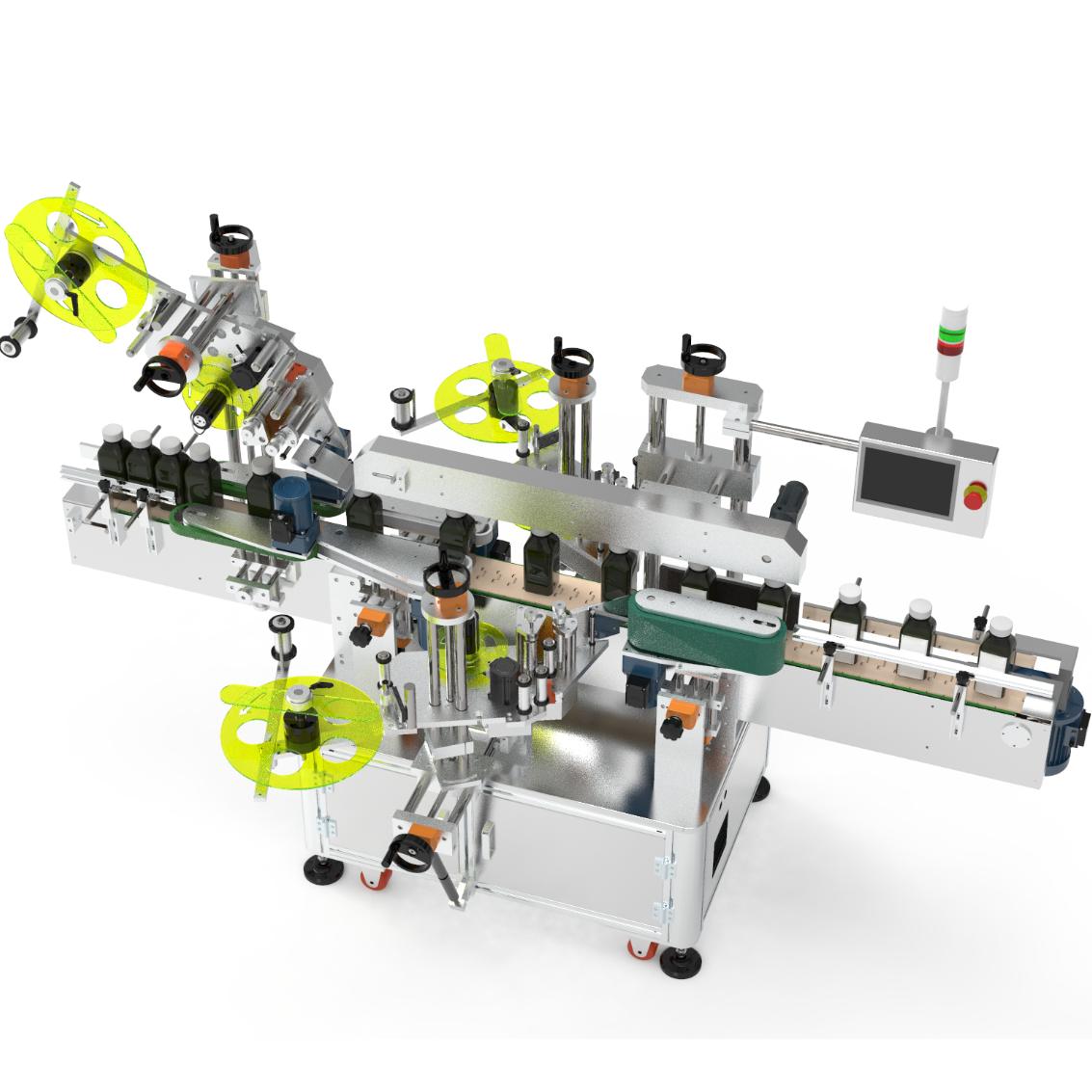

Top & Front & Back Labeling
Suit for objects labeling on front back and top surface, with three stickers
- Product Details
- Technical Specification
Machine Function Introduction
● Suit for objects labeling on front back and top surface, with three stickers ;
● With rolling label device, suit for round bottle labeling wrap around;
● With brush label cylinder,suit for square bottle labeling on multi sides with one label;
Parameter
Model | DPM-DLM-A |
Driving Mode | Servo motor |
Yield（pcs/min） | 30-150 (depends on bottle and label size) |
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm |
Inner diameter of label roll | 76 mm |
Outer diameter of label roll | 350 mm(max) |
Suitable label size | W: 15-150 mm L:15-250 mm |
Suitable bottle size | W:(Diameter): 20-90mm , H:30-300mm |
Printer use air | 5kg/cm ² |
Voltage (can customized) | 110V/220V/380V |
Machine size | 2400（L） 1500 (W) 1600 (H) mm |
Electrical brand
No | Name | Brand |
1 | HMI (Touch screen) | SIEMENS |
2 | PLC | SIEMENS |
3 | Servo motor and driver | Panisonic |
4 | Sensor (check bottle) | Japan KEYENCE |
5 | Sensor (check label) | German LEUZE |
6 | Inverter | DELTA |
7 | Separate bottle motor | JSCC |
8 | Tidy bottle motor | JSCC |
9 | Press bottle motor | JSCC |
10 | Conveyor motor | Switzerland ABB |
11 | Encoder | German SICK |
