Bucket Side Surface labeling
Buckets delivery to labeling machine conveyor from production line, or worker put bucket on machine conveyor,delivery to fix position device, make sure each bucket in the same direction
- Product Details
- Technical Specification
Overview

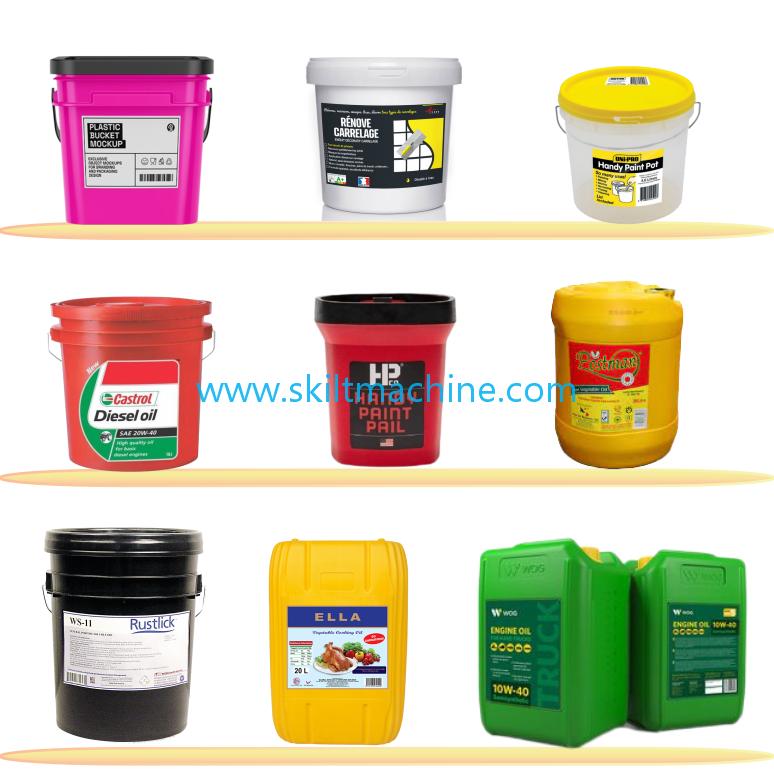

Fully automatic labeling machine for bucket and pails
Working Process
Buckets delivery to labeling machine conveyor from production line, or worker put bucket on machine conveyor,delivery to fix position device, make sure each bucket in the same direction ;

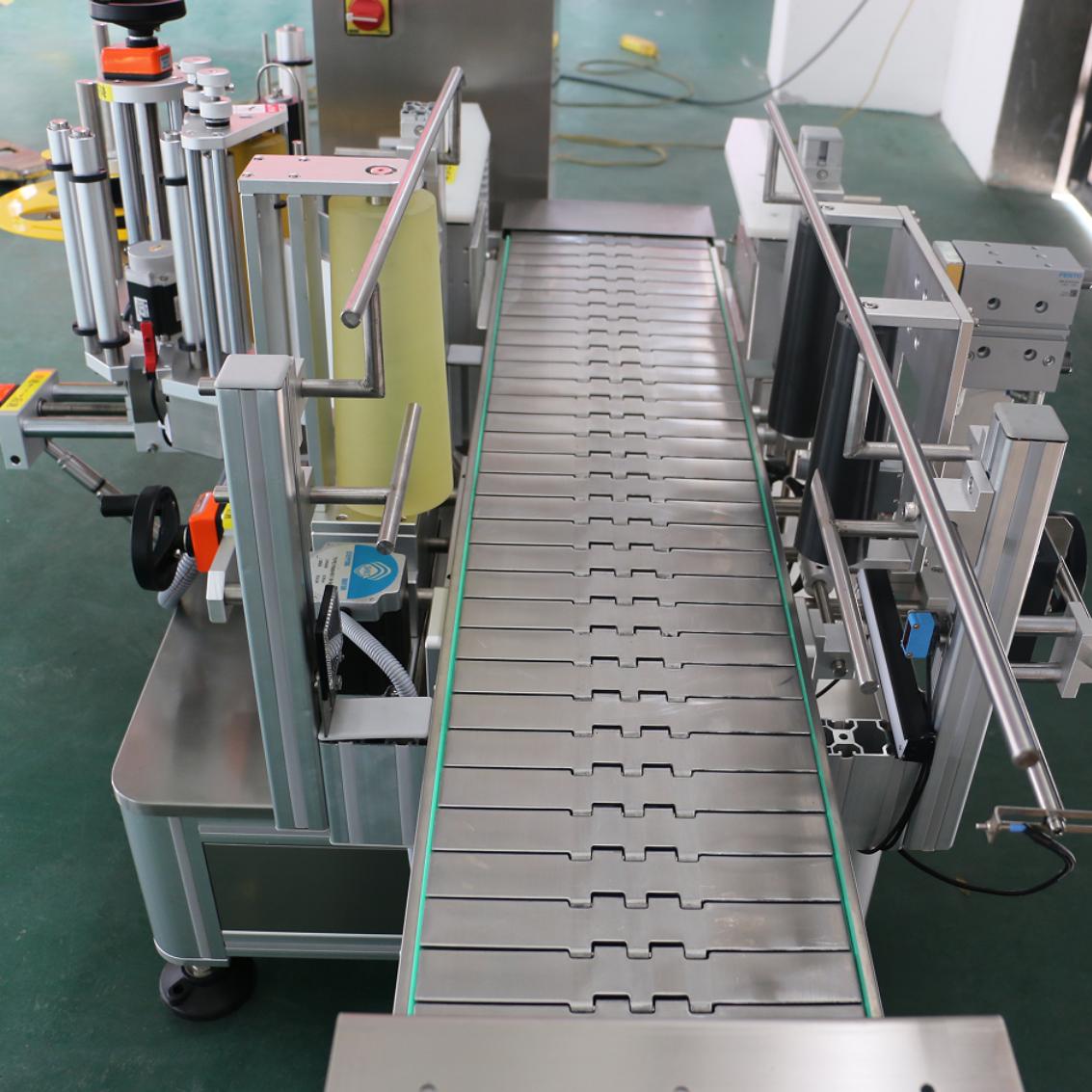

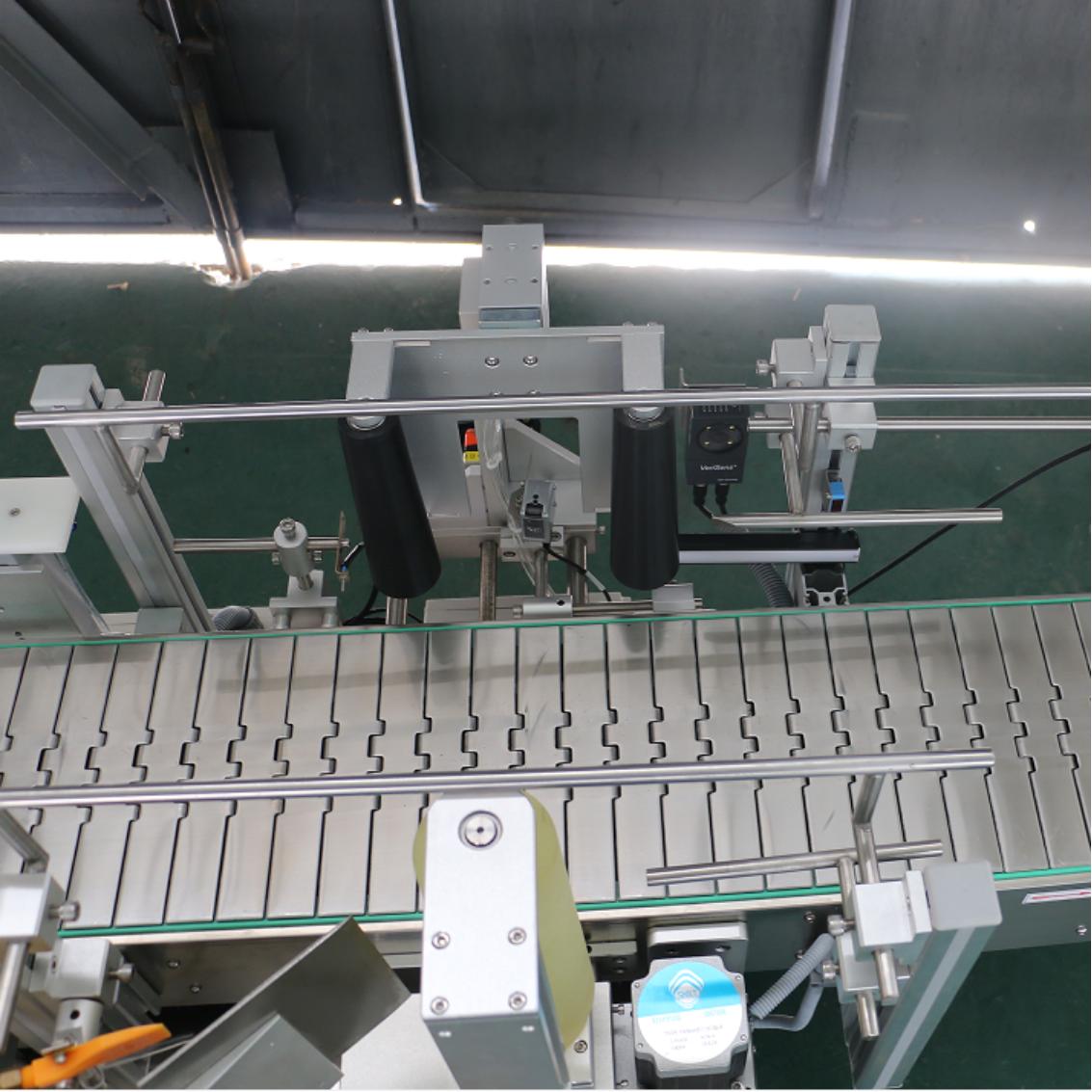

Bucket move in a center line into the press bucket device, fix bucket body not move and waiting for labeling.

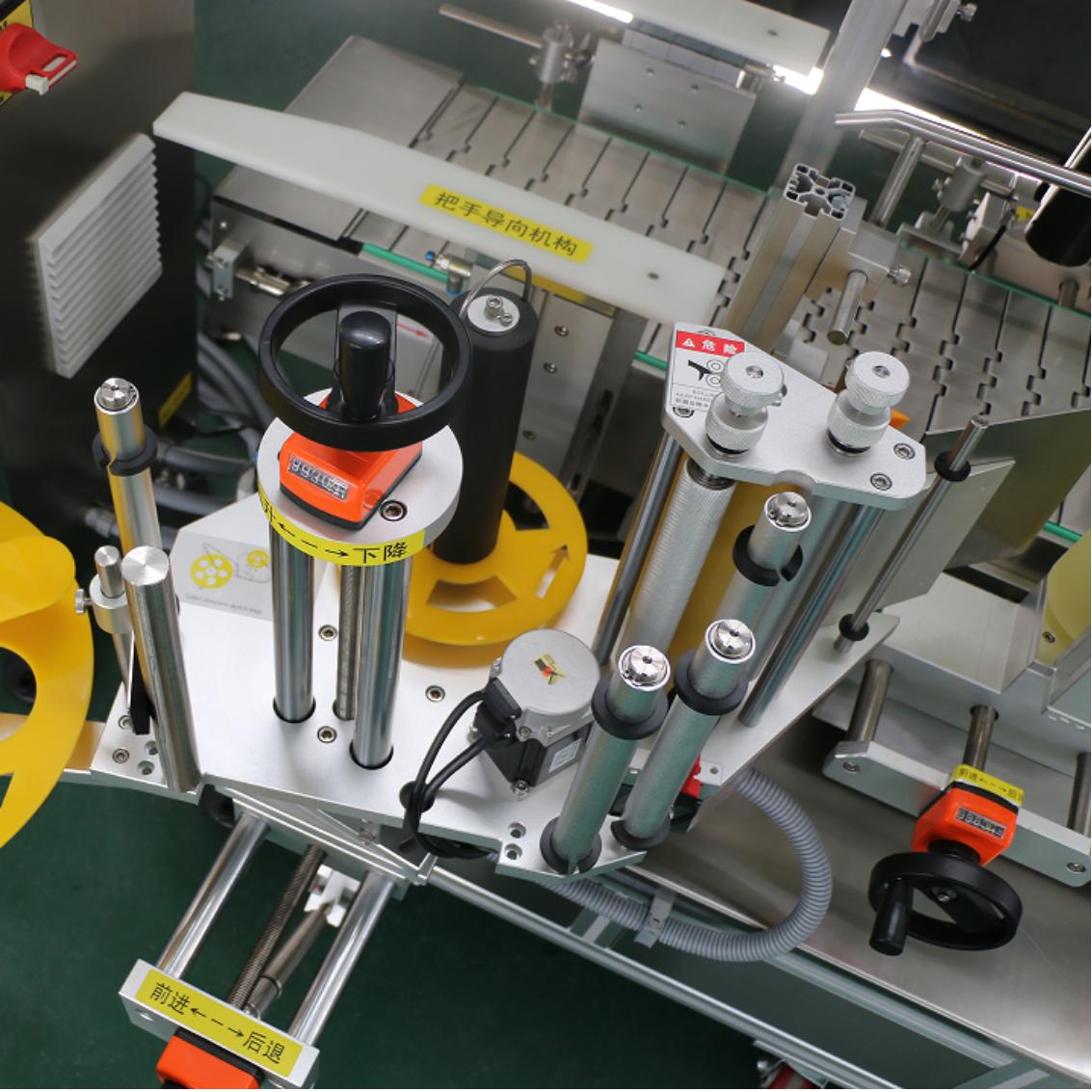

When sensor check bucket, send signal to PLC, PLC received the signal deal with information first, then output signal to servo motor send label on bucket side surface first, then air cylinder device brush label on bucket surface smoothly, labeling finish.
Parameter
Model | SLM-S |
Driving Mode | Servo motor |
Yield(pcs/min) | 10-70 (depends on bucket and label size) |
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm |
Inner diameter of label roll | 76 mm |
Outer diameter of label roll | 350 mm(max) |
Suitable label size | Width 15-150 mm length 15-250 mm |
Suitable bucket size | Can customized |
Printer use air | 5kg/cm ² |
Voltage (can customized) | 110V/220V/380V |
Machine size | 2300(L) 800 (W) 1600 (H) mm |
Electrical Configuration
No | Name | Brand |
1 | HMI (Touch screen) | SIEMENS |
2 | PLC | SIEMENS |
3 | Servo motor and driver | Panisonic |
4 | Sensor (check bucket) | Japan KEYENCE |
5 | Sensor (check label) | German LEUZE |
6 | Inverter | DELTA |
7 | Press bucket motor | JSCC |
8 | Conveyor motor | Switzerland ABB |
9 | Encoder | German SICK |
